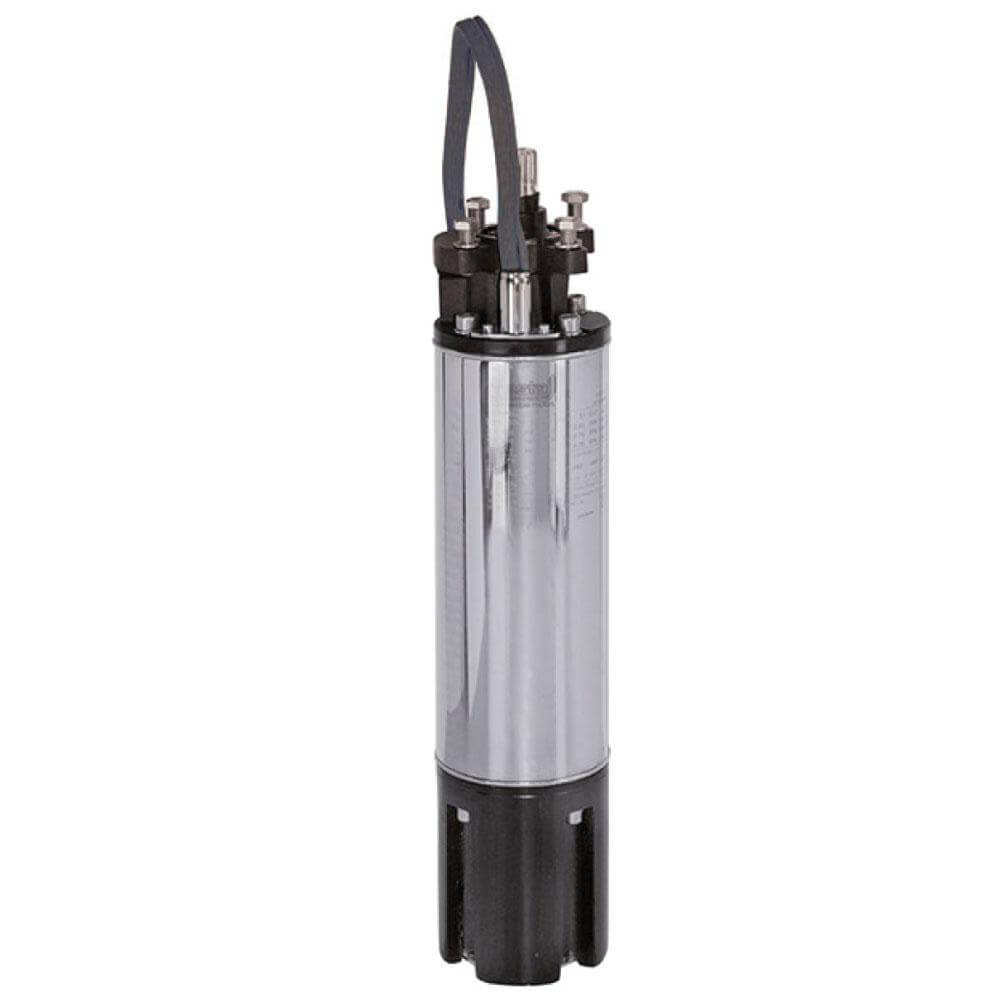

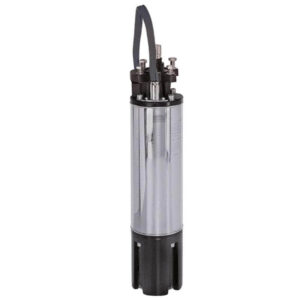

V6 (6-Inch, 150mm) Borewell Submersible Motor – World-Class, Energy-Efficient & Long-Lasting Motor for Deep Wells (100–1500 Feet)

Price range: ₹23,000.00 through ₹27,000.00

  • Submersible Motor designed for 6-inch or larger diameter borewells and deep wells (100–1500 feet).
  • Available in a wide range of capacities (3 HP to 100 HP) for small to large applications.
  • Delivers powerful and reliable torque for efficient pumping across farms, industries, and residential needs.
  • Heavy-duty motor with 100% high-grade copper winding ensures maximum efficiency, durability, and long life.
  • Available in Stainless Steel and Cast Iron body for superior corrosion resistance.
  • Highly energy-efficient, solar-compatible, and eco-friendly pumping solution.
  • IoT and mobile app compatibility for smart monitoring and easy control.
  • Reliable and versatile—ideal for agriculture, industries, mining, oil & gas, marine, and home water needs.
  • Built with world-class facilities and advanced technology for long-lasting performance.
SKU: GSE-AC-SP-V6-001-1 Categories: , Tags: , , Brand: , ,

Description

The GlobeSync Enterprise V6 (6-Inch, 150mm) ISI Certified Submersible Motor is designed for deep borewells of 6-inch or larger diameter, working efficiently from depths of 100 to 1500 feet. It is available in a wide power range (3 HP to 100 HP) to suit farms, industries, and household needs. Made in our world-class manufacturing facility with advanced technology and top-quality materials, this motor delivers powerful torque, high energy efficiency, and long-lasting durability. Engineered for 24/7 continuous operation, it ensures a maintenance-free, reliable water pumping performance for years to come.

GlobeSync V6 Submersible Motor Key Features:

  • World-Class Quality: Made from virgin raw materials with the highest standards, crafted using advanced CNC and laser technology for long-lasting, reliable performance.
  • Energy Efficient: Specially designed motor delivers maximum output with minimum power consumption—saving electricity and reducing operating costs.
  • Superior Motor Technology: 100% copper winding motor with strong sleeve and thrust bearings ensures durability, smooth running, and longer life.
  • User-Friendly Design: Slim body fits narrow borewells; dynamically balanced for smooth, vibration-free, and quiet operation.
  • Wide Voltage Range: Works efficiently even in low or fluctuating voltage conditions, making it ideal for rural and industrial areas.
  • Corrosion Resistant: Motor stator and rotor are vacuum impregnated and coated for superior protection against rust and harsh water conditions.
  • Powerful Torque: Multi-stage winding and precision engineering provide reliable torque for deep borewell water pumping and heavy-duty use.
  • Built-in Protection: Comes with a thrust bearing and design safeguards to extend motor life.
  • Compact & Easy to Install: Slim, maintenance-free design that fits easily in narrow borewells and requires minimal upkeep.
  • Available in Variants: Heavy-duty Stainless Steel or Cast Iron body options—tailored to different climates, water types, and application needs.
  • Future-Ready: IoT-enabled smart models available for mobile monitoring and remote control.
  • ISI & BEE Certified: Assured safety, performance, and efficiency as per world-class standards.

Common Application:

  • Agricultural Irrigation Systems
  • Farm Water Supply
  • Rural Water Distribution
  • Industrial Water Handling
  • Deep Borewell Water Extraction
  • Pressure Boosting in Wells
  • This product listing refers to the motor only and does not include the pump end unless specifically stated.
  • Motor performance parameters such as torque, efficiency, and output may vary depending on pump stage, installation depth, and water source conditions.
  • Images shown are for representation purposes only. Actual product appearance, stage design, and material composition may vary slightly based on the selected model or customization.
  • Warranty coverage applies only when installed and operated under recommended conditions; damages due to dry running, voltage fluctuations, or misuse are not covered.
  • Installation should be carried out by a qualified technician to prevent product damage or performance issues.
  • The manufacturer reserves the right to update specifications, design, or materials without prior notice as part of continuous product improvement.

Technical Specifications:

  • Motor Type: V6 Borewell Submersible Motor
  • Borewell Size: 6 inch (150 mm) and above
  • Material/Body Options: Stainless Steel (304 / 316 / 202) or Cast Iron
  • Power Range: 3 HP – 100 HP (Model Specific)
  • Operating Depth: 100 – 1500 feet
  • Operating Voltage: 300V – 440V (Three Phase)
  • Frequency: 50 Hz
  • Cooling Method: Water Cooled
  • Max. Ambient Temperature: 50°C
  • Max. Sand Content in Water: 50 PPM
  • Installation Position: Vertical (Standard) | Horizontal (Optional)
  • Shaft Material: Stainless Steel
  • Certification: ISI Certified for quality & safety, BEE Energy Star rated
  • Warranty: 12 to 18 Months (depending on model)

Additional information

Weight 100 kg
Dimensions 210 × 6 × 210 cm
Motor Body Type

SS Body, Cast Iron Body
Other Information

•Operating Conditions: Suitable for clean or slightly sandy water (up to 50 PPM). Not recommended for highly acidic, chemical-laden, or dirty water sources unless customized.
•Pump Compatibility: Compatible with 3 HP to 100 HP submersible pumps, BEE-rated or equivalent.
•Customization: Shaft material, voltage range, and motor body can be tailored for OEM or bulk orders.
•Certifications: Available with ISO, BIS, or CE compliance based on buyer region or government tender requirements.
•Packaging: Every unit is safely packed in heavy-duty cartons or wooden boxes with proper cushioning to prevent transit damage.
